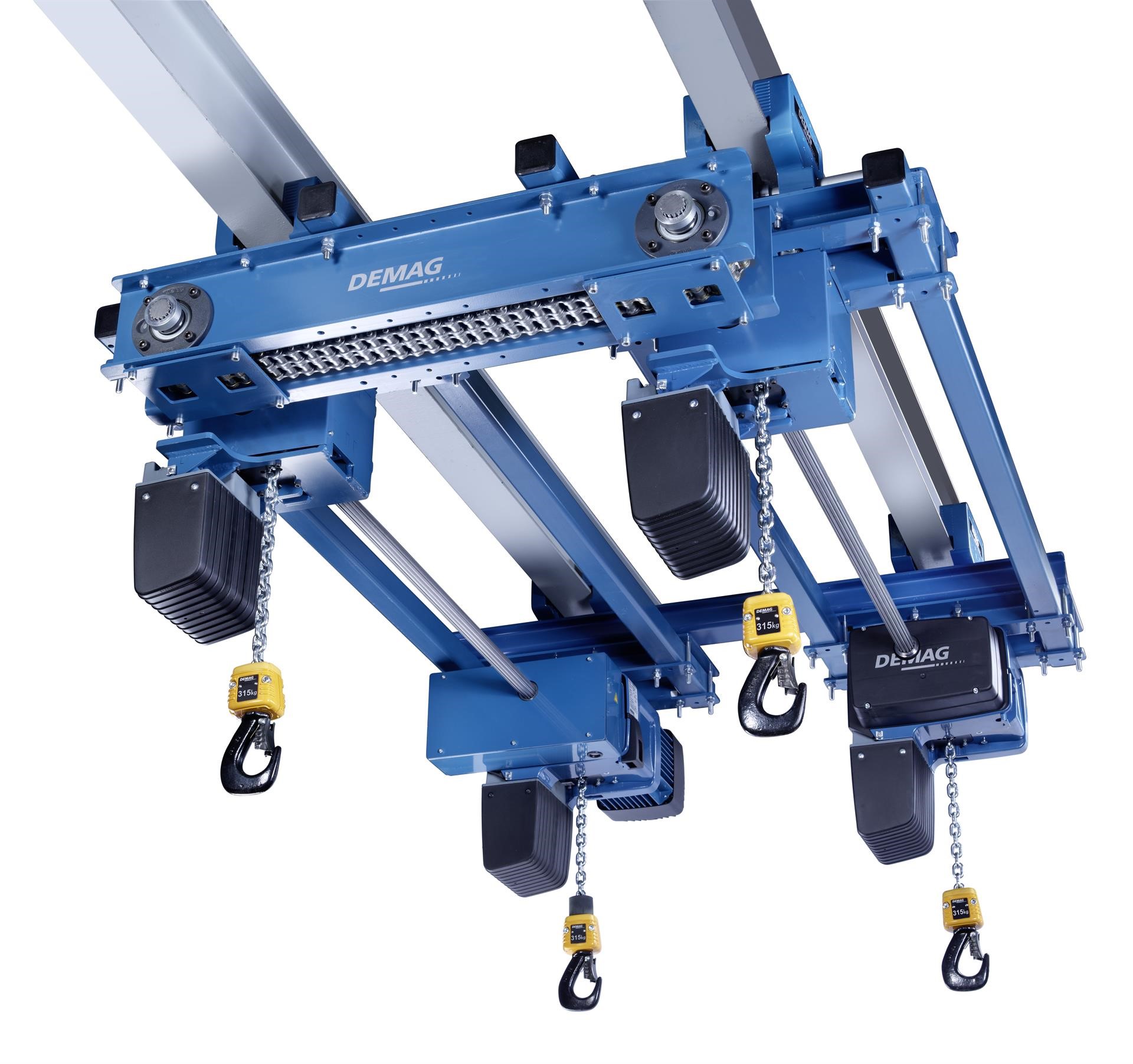

The Demag LDC-Q quadro chain hoist, a series hoist unit from Demag’s DC range that has a successful track record all over the world, can be used for a wide variety of handling requirements in production and logistics applications. Equipped with four load hooks, LDC-Q units can handle and transport customer-specific load handling attachments or flat components and feed materials to the relevant workstations.

The basis for this broad range of applications is the technology offered by the LDC-D double chain hoist and some dedicated characteristics. For example, these include a design that combines two double chain hoists which have only one drive, which is a special technical feature. This means that only one chain hoist motor transfers power to the other three chain lead-offs of the Demag LDC-Q quadro unit via corresponding connections. Mechanically synchronized hook lead-offs provide for uniform and precise load handling.

This arrangement enables loads with an asymmetrical weight distribution up to a ratio of 70:30 to be picked up without any problems. ProHub integrated variable speed control, which is a feature unique to Demag chain hoists, also permits rated speeds of up to 90 percent higher in the partial load range.Operators can utilise sizes DC 10 and DC 25 for handling loads weighing up to 3.2 t.
